Telecommunication Manhole Series
Precast concrete electrical manholes are used to protect vital connections and controls for modern electricity distribution. Our precast concrete manholes are produced in a controlled environment and provide superior performance for long-term solution. We produce an array range of electrical manholes that come in different sizes and dimensions.
General Details :
| No. | Description | A | B | Cover Type | Gross Weight (kg) |
Duct Ways |
|---|---|---|---|---|---|---|
| External Dimension Including Cover (mm) |
Internal Dimension (mm) |
Side | ||||

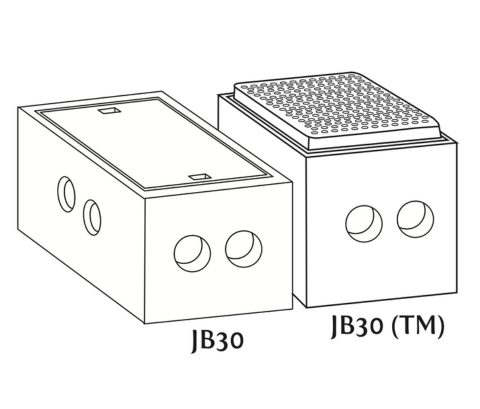

| 1 | Precast Telecommunication Manhole JB30 Full Set |
950 (L) x 650 (W) x 630 (H) | 750 (L) x 450 (W) x 450 (H) | Concrete Cover / Mild Steel Cover |
550 | 2 |
| 2 | Precast Telecommunication Manhole JB30 (M) Full Set |
950 (L) x 950 (W) x 850 (H) | 750 (L) x 750 (W) x 600 (H) | Iron Cover / Mild Steel Cover |
1100 | 4 |
General Detail:
| No. | Description | A | B | Cover Type | Operator Logo | Gross Weight (kg) |
Duct Ways | |
|---|---|---|---|---|---|---|---|---|
| External Dimension (mm) | Internal Dimension (mm) | Side | End | |||||

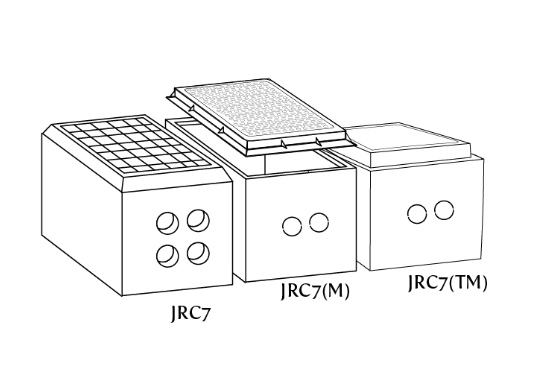

| 1 | Precast Concrete Manhole JRC7 Full Set | 1200 (L) x 900 (W) x 1000 (H) | 900 (L) x 700 (W) x 600 (H) | Rectangular with Iron Plate | - | 1300 | 4 | 4 |
| 2 | Precast Concrete Manhole JRC7 Full Set - TM | 1200 (L) x 900 (W) x 1000 (H) | 900 (L) x 700 (W) x 600 (H) | Rectangular with Iron Plate | TM | 1300 | 4 | 4 |
| 3 | Precast Concrete Manhole TTAP/JRC7 Full Set - MAXIS | 1200 (L) x 900 (W) x 1100 (H) | 900 (L) x 700 (W) x 600 (H) | Collar with Round Cover / Collar with MC3 Square |
MAXIS | 1600 | 4 | 4 |

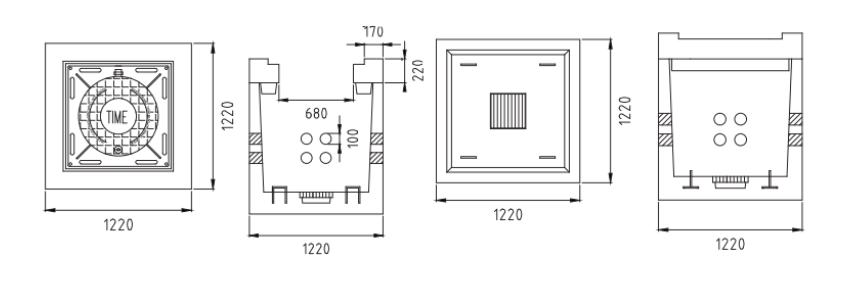

| 4 | Precast Concrete Manhole TTAP/JRC7 Full Set - TIME | 1200 (L) x 900 (W) x 1100 (H) | 900 (L) x 700 (W) x 600 (H) | Collar with Round Cover | TIME | 1600 | 4 | 4 |
| 5 | Precast Concrete Manhole JRC7 Full Set - FIBERCOMM | 1200 (L) x 900 (W) x 1000 (H) | 900 (L) x 700 (W) x 600 (H) | Rectangular with Iron Plate | FIBERCOMM | 1300 | 4 | 4 |
| 6 | Precast Concrete Manhole JRC7 Full Set - U-MOBILE | 1200 (L) x 900 (W) x 1000 (H) | 900 (L) x 700 (W) x 600 (H) | Rectangular with Iron Plate | U-MOBILE | 1300 | 4 | 4 |
| 7 | Precast Concrete Manhole JRC7 Full Set - CELCOM | 1200 (L) x 900 (W) x 1100 (H) | 900 (L) x 700 (W) x 600 (H) | Collar with Round Cover / Rectangular with Iron Plate |
CELCOM | 1600 / 1300 | 4 | 4 |
| 8 | Precast Concrete Manhole JRC7 Full Set - DIGI | 1200 (L) x 900 (W) x 1000 (H) | 900 (L) x 700 (W) x 600 (H) | Rectangular with Iron Plate | DIGI | 1300 | 4 | 4 |

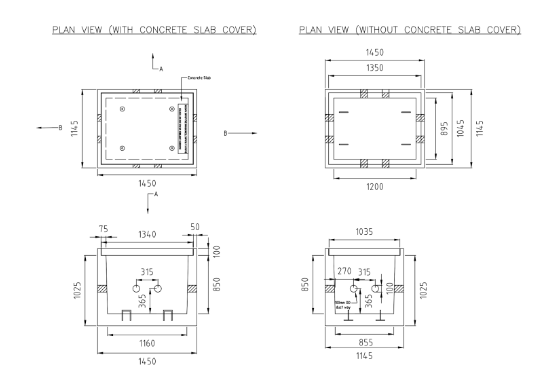

| 9 | TELEKOM TYPE APPROVE SPECIFICATION JRC7 TM | 1460 (L) x 1155 (W) x 1375 (H) | 1160 (L) x 855 (W) x 850 (H) | Solid Rectangular Cover | - | - | - | - |
| 10 | Precast Concrete Manhole JRC7 (M) | 1280 (L) x 975 (W) x 1100 (H) | - | Rectangular Iron | - | 1700 | 0 | 2 |
General Detail:
| No. | Description | A | B | Cover Type | Operator Logo | Gross Weight (kg) |
Duct Ways (100mm Dia.) |
|---|---|---|---|---|---|---|---|
| External Dimension Including Cover (mm) | Internal Dimension (mm) | ||||||

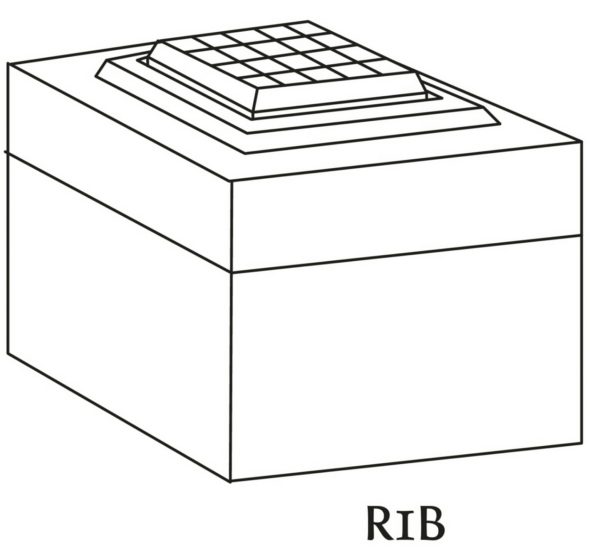

| 1 | Precast Concrete Manhole R1B Full Set | 2100 (L) X 1500 (W) X 2350 (H) | 1780 (L) X 1180 (W) X 1800 (H) | Square Iron Cover | - | 8000 | 8 |
| 2 | RIB TM | 2200 (L) X 1600 (W) X 2350 (H) | 1780 (L) X 1180 (W) X 1800 (H) | Solid Square Iron Cover | - | 8000 | 8 |
General Detail:
| No. | Description | A | B | Cover Type | Operator Logo | Gross Weight (kg) |
Duct Ways | |
|---|---|---|---|---|---|---|---|---|
| External Dimension Including Cover (mm) | Internal Dimension (mm) | Side | End | |||||

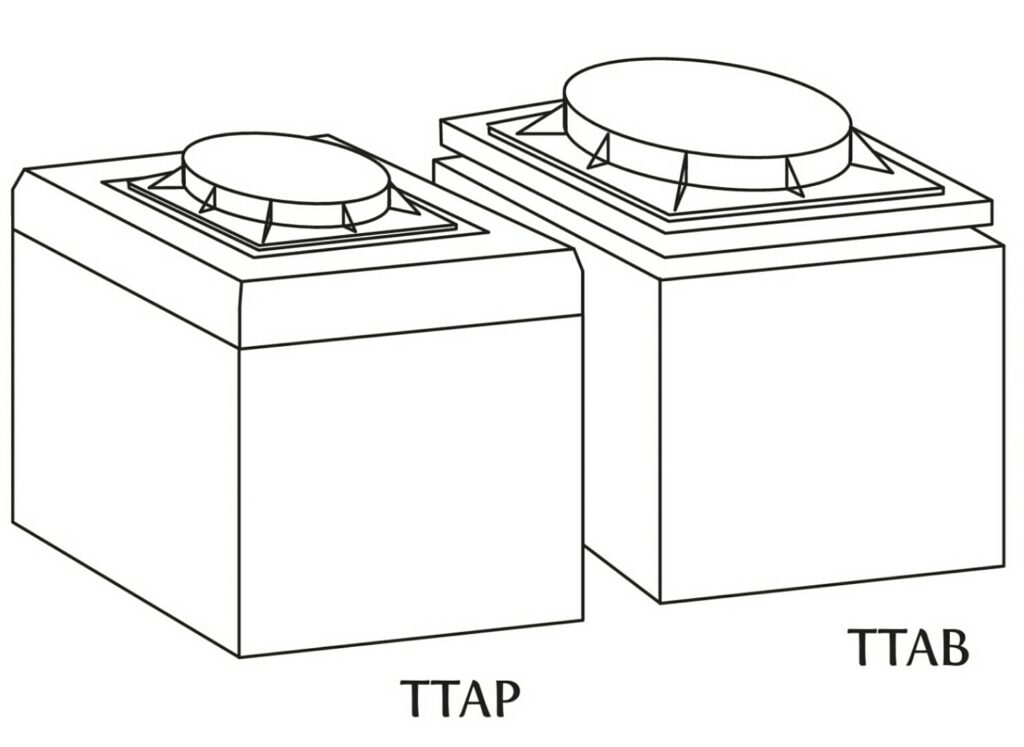

| 1 | Precast Concrete Manhole TTAB Full Set | 1200 (L) x 900 (W) x 1550 (H) | 960 (L) x 960 (W) x 1000 (H) | Round Iron Cover | - | 3000 | 4 | 4 |
| 2 | Precast Concrete Manhole TTAP Full Set | 1200 (L) x 900 (W) x 1170 (H) | 950 (L) x 650 (W) x 725 (H) | Solid Round Cover | - | 2000 | 4 | 4 |
General Detail:
| No. | Description | A | B | Cover Type | Operator Logo | Gross Weight (kg) |
Duct Ways | |
|---|---|---|---|---|---|---|---|---|
| External Dimension Including Cover (mm) | Internal Dimension (mm) | Side | End | |||||

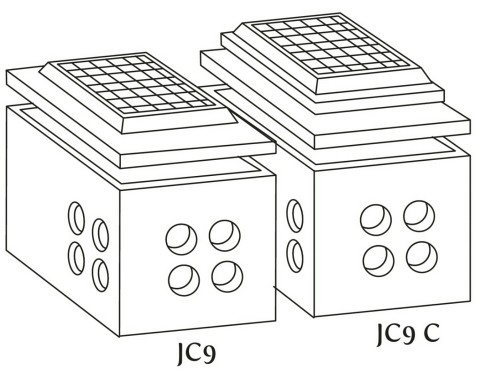

| 1 | Precast Concrete Manhole JC9 Full Set | 1880 (L) x 900 (W) x 1260 (H) | 1580 (L) x 600 (W) x 960 (H) | Rectangular Iron Cover | - | 3000 | 4 | 4 |
| Round Iron Cover | MAXIS / TIME / CELCOM | |||||||
| 2 | Precast Concrete Manhole JC9C Full Set | 2050 (L) x 1400 (W) x 1480 (H) | 1770 (L) x 1120 (W) x 1000 (H) | Rectangular Iron Cover | - | 4000 | 6 | 6 |
Notes:
1. All precast manholes are designed in accordance to the guidance in BS 8810.
2. All dimensions are in millimetre (mm) unless stated otherwise.
3. Main reinforcement is made from high tensile steel bar in accordance to BS 4449 and BS 4461
4. Able to withstand loading of 22.5 metric tonnes axle load.
5. Concrete cube strength is 30 MPa.
6. Duct entry diameter comes in either 100mm or 150mm.
7. A Product Certificate as proof of authenticity will be issued for all manhole products.
8. Precast concrete manhole installation and assembly training can be provided upon request.
